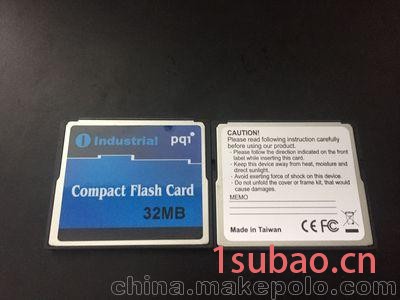

- 品牌：劲永PQI
- 型号：AC46-0320-0446
產品敘述 | Hi-Speed ICF | |
型號 | AC46-XXXX-04X5(6) | |
介面 | 50PIN SMT ConNECTOR (TYPE I) | |
儲存容量 | 32MB~8GB | |
傳輸速率 | Read: Up to 8.9MB/Sec Write: Up to 7.3MB/Sec | |
寫入保護 | Yes | |
電源 | DC+5V±10% ; DC+3.3V±5% | |
耗電量 | 24.1mA/ 26.5mA (3.3v/ 5.0v) | |
操作環境 | ?Temperature: Operating: 0℃~+70℃ Non-operating: -40℃~+85℃ ?Relative Humidity: 8%~95% (non-condensing) ?Vibration: Operating: 15G Non-operating: 15G ?Shock: Operating: 1000G Non-operating: 1000G ?MTBF:2,000,000 Hours ?R/W Cycle:5,000,000 Times |
產品敘述 | Hi-Speed ICF | |
型號 | AC46-XXXX-04X5(6) | |
介面 | 50PIN SMT ConNECTOR (TYPE I) | |
儲存容量 | 32MB~8GB | |
傳輸速率 | Read: Up to 8.9MB/Sec Write: Up to 7.3MB/Sec | |
寫入保護 | Yes | |
電源 | DC+5V±10% ; DC+3.3V±5% | |
耗電量 | 24.1mA/ 26.5mA (3.3v/ 5.0v) | |
操作環境 | ?Temperature: Operating: 0℃~+70℃ Non-operating: -40℃~+85℃ ?Relative Humidity: 8%~95% (non-condensing) ?Vibration: Operating: 15G Non-operating: 15G ?Shock: Operating: 1000G Non-operating: 1000G ?MTBF:2,000,000 Hours ?R/W Cycle:5,000,000 Times |
產品敘述 | Hi-Speed ICF | |
型號 | AC46-XXXX-04X5(6) | |
介面 | 50PIN SMT ConNECTOR (TYPE I) | |
儲存容量 | 32MB~8GB | |
傳輸速率 | Read: Up to 8.9MB/Sec Write: Up to 7.3MB/Sec | |
寫入保護 | Yes | |
電源 | DC+5V±10% ; DC+3.3V±5% | |
耗電量 | 24.1mA/ 26.5mA (3.3v/ 5.0v) | |
操作環境 | ?Temperature: Operating: 0℃~+70℃ Non-operating: -40℃~+85℃ ?Relative Humidity: 8%~95% (non-condensing) ?Vibration: Operating: 15G Non-operating: 15G ?Shock: Operating: 1000G Non-operating: 1000G ?MTBF:2,000,000 Hours ?R/W Cycle:5,000,000 Times |
