? High reliability based on internal ECC (Error Correcting Code) Function.
? Data reliability is 1 error in 1014 bits read.
? Support PIO Mode4 and MDMA mode2.
? Power Consumption (3.3V/5.0V).
? High Read/Write Speed.
產品敘述

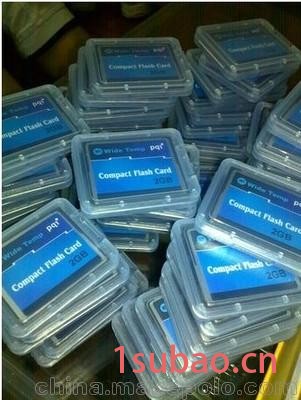

High-Speed Series AC46-XXXX is CompactFlash? based on flash memory controller technology. This card complies with CompactFlash? specification; it is suitable for the usage of data storage memory for PC or other electric equipment and digital still camera. This card is equipped with NAND flash memory. By using this card it is possible to operate stability for the system that has CompactFlash? slots.
Fixed mode (045A)~AC46-XXXXXXXX6 disk use in system storage, some operating system can not accept boot-up from removable mode (848A)~AC46-XXXXXXXX5 disk like windows XP, when we boot-up from CFC with windows XP, the system detect the device will disable Removable device boot-up function, so the system can not finish the boot-up process. For this issue, we can set the device mode to fixed mode (045A) to solve this problem.
The CFC setting to Fixed or Removable mode will no any function different or issue.
型號
AC46-XXXX-04X5(6)
Specification:
Model
High-Speed Series - Industrial CF Card Solution
Capacity
512MB to 8GB
Power Requirement
DC +3.3V ± 5% or DC +5.0V ± 10%
Interface
50 pin CF (ATA) interface
Flash Technology
NAND type SLC flash based
Standard Compliance
CFA 2.1 ATA Standard Compatible
Transfer Mode
PIO Mode:0-6, Multi word DMA Mode: 0-4, Ultra DMA Mode: 0-4
Channel Mode
Dual channel
Sequential Read (Est.)
Est. 7.1 MB/sec
Sequential Write (Est.)
Est. 4.8 MB/sec
Notice: The value is various bases on the testing platform.
Power Consumption
3.3V : 32.4mA, 5V : 36.3mA
Operating Temperature
0oC to 70oC, (Industrial type) -40oC to 85oC, (Wide Temperature type)
