| 序号 | 规格型号 | 别名型号 | 线圈电压 | 接点构成 | 触点负载 | 切换电压 | 切换电流 | 切换功率 | 封装形式 |
| 1 | CRSR-1-03 | CRSR103 | 3VDC | 1a | 0.1A/125VAC 0.5A/24VDC | 120VAC 60VDC | 1A | 10W(DC)/10VA(AC) | 直插式 |
| 2 | CRSR-1-05 | CRSR105 | 5VDC | 1a | 0.1A/125VAC 0.5A/24VDC | 120VAC 60VDC | 1A | 10W(DC)/10VA(AC) | 直插式 |
| 3 | CRSR-1-08 | CRSR108 | 8VDC | 1a | 0.1A/125VAC 0.5A/24VDC | 120VAC 60VDC | 1A | 10W(DC)/10VA(AC) | 直插式 |
| 4 | CRSR-1-12 | CRSR112 | 12VDC | 1a | 0.1A/125VAC 0.5A/24VDC | 120VAC 60VDC | 1A | 10W(DC)/10VA(AC) | 直插式 |
| 5 | CRSR-1-24 | CRSR124 | 24VDC | 1a | 0.1A/125VAC 0.5A/24VDC | 120VAC 60VDC | 1A | 10W(DC)/10VA(AC) | 直插式 |
| 6 | CRSR-2-03 | CRSR203 | 3VDC | 1a | 0.1A/125VAC 0.5A/24VDC | 120VAC 60VDC | 1A | 10W(DC)/10VA(AC) | 直插式 |
| 7 | CRSR-2-05 | CRSR205 | 5VDC | 1a | 0.1A/125VAC 0.5A/24VDC | 120VAC 60VDC | 1A | 10W(DC)/10VA(AC) | 直插式 |
| 8 | CRSR-2-08 | CRSR208 | 8VDC | 1a | 0.1A/125VAC 0.5A/24VDC | 120VAC 60VDC | 1A | 10W(DC)/10VA(AC) | 直插式 |
| 9 | CRSR-2-12 | CRSR212 | 12VDC | 1a | 0.1A/125VAC 0.5A/24VDC | 120VAC 60VDC | 1A | 10W(DC)/10VA(AC) | 直插式 |
| 10 | CRSR-2-24 | CRSR224 | 24VDC | 1a | 0.1A/125VAC 0.5A/24VDC | 120VAC 60VDC | 1A | 10W(DC)/10VA(AC) | 直插式 |
| 11 | CRSR-5-03 | CRSR503 | 3VDC | 1a | 0.1A/125VAC 0.5A/24VDC | 120VAC 60VDC | 1A | 10W(DC)/10VA(AC) | 直插式 |

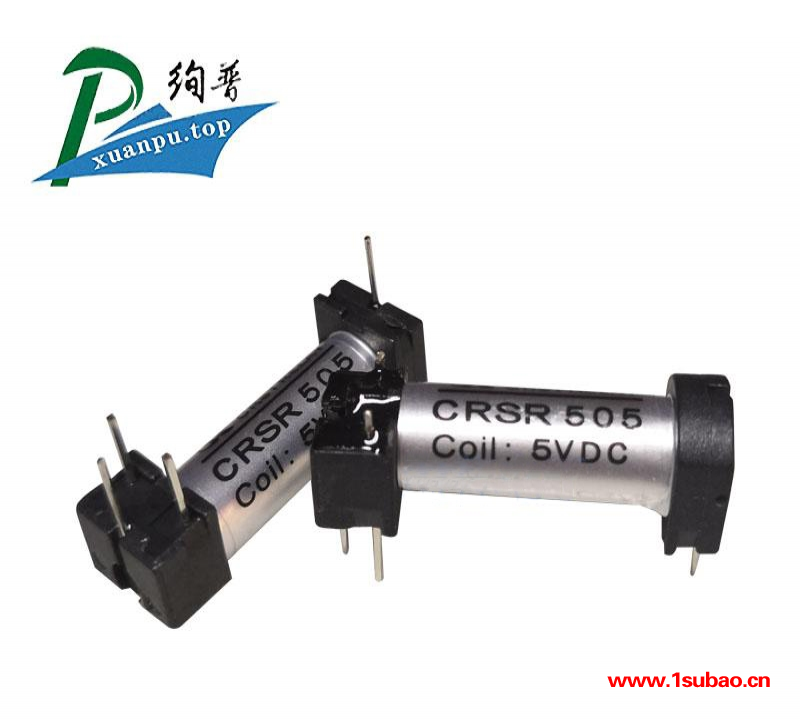

| 12 | CRSR-5-05 | CRSR505 | 5VDC | 1a | 0.1A/125VAC 0.5A/24VDC | 120VAC 60VDC | 1A | 10W(DC)/10VA(AC) | 直插式 |
| 13 | CRSR-5-08 | CRSR508 | 8VDC | 1a | 0.1A/125VAC 0.5A/24VDC | 120VAC 60VDC | 1A | 10W(DC)/10VA(AC) | 直插式 |
| 14 | CRSR-5-12 | CRSR512 | 12VDC | 1a | 0.1A/125VAC 0.5A/24VDC | 120VAC 60VDC | 1A | 10W(DC)/10VA(AC) | 直插式 |
| 15 | CRSR-5-24 | CRSR524 | 24VDC | 1a | 0.1A/125VAC 0.5A/24VDC | 120VAC 60VDC | 1A | 10W(DC)/10VA(AC) | 直插式 |
| 16 | CRSR-7-03 | CRSR703 | 3VDC | 1a | 0.1A/125VAC 0.5A/24VDC | 120VAC 60VDC | 1A | 10W(DC)/10VA(AC) | 直插式 |
| 17 | CRSR-7-05 | CRSR705 | 5VDC | 1a | 0.1A/125VAC 0.5A/24VDC | 120VAC 60VDC | 1A | 10W(DC)/10VA(AC) | 直插式 |
| 18 | CRSR-7-08 | CRSR708 | 8VDC | 1a | 0.1A/125VAC 0.5A/24VDC | 120VAC 60VDC | 1A | 10W(DC)/10VA(AC) | 直插式 |
| 19 | CRSR-7-12 | CRSR712 | 12VDC | 1a | 0.1A/125VAC 0.5A/24VDC | 120VAC 60VDC | 1A | 10W(DC)/10VA(AC) | 直插式 |
| 20 | CRSR-7-24 | CRSR724 | 24VDC | 1a | 0.1A/125VAC 0.5A/24VDC | 120VAC 60VDC | 1A | 10W(DC)/10VA(AC) | 直插式 |
| 21 | CRSR-10-03 | CRSR1003 | 3VDC | 1a | 0.1A/125VAC 0.5A/24VDC | 120VAC 60VDC | 1A | 10W(DC)/10VA(AC) | 直插式 |
| 22 | CRSR-10-05 | CRSR1005 | 5VDC | 1a | 0.1A/125VAC 0.5A/24VDC | 120VAC 60VDC | 1A | 10W(DC)/10VA(AC) | 直插式 |
| 23 | CRSR-10-08 | CRSR1008 | 8VDC | 1a | 0.1A/125VAC 0.5A/24VDC | 120VAC 60VDC | 1A | 10W(DC)/10VA(AC) | 直插式 |
| 24 | CRSR-10-12 | CRSR1012 | 12VDC | 1a | 0.1A/125VAC 0.5A/24VDC | 120VAC 60VDC | 1A | 10W(DC)/10VA(AC) | 直插式 |
| 25 | CRSR-10-24 | CRSR1024 | 24VDC | 1a | 0.1A/125VAC 0.5A/24VDC | 120VAC 60VDC | 1A | 10W(DC)/10VA(AC) | 直插式 |
| 26 | CRSR-20-03 | CRSR2003 | 3VDC | 1a | 0.1A/125VAC 0.5A/24VDC | 120VAC 60VDC | 1A | 10W(DC)/10VA(AC) | 直插式 |
| 27 | CRSR-20-05 | CRSR2005 | 5VDC | 1a | 0.1A/125VAC 0.5A/24VDC | 120VAC 60VDC | 1A | 10W(DC)/10VA(AC) | 直插式 |
| 28 | CRSR-20-08 | CRSR2008 | 8VDC | 1a | 0.1A/125VAC 0.5A/24VDC | 120VAC 60VDC | 1A | 10W(DC)/10VA(AC) | 直插式 |
| 29 | CRSR-20-12 | CRSR2012 | 12VDC | 1a | 0.1A/125VAC 0.5A/24VDC | 120VAC 60VDC | 1A | 10W(DC)/10VA(AC) | 直插式 |
| 30 | CRSR-20-24 | CRSR2024 | 24VDC | 1a | 0.1A/125VAC 0.5A/24VDC | 120VAC 60VDC | 1A | 10W(DC)/10VA(AC) | 直插式 |
