| 产地 | 苏州 |
|---|---|
| 结构类型 | 螺杆式 |
| 类型 | 螺杆式冷水机 |
| 能效比 | 3.1 |
| 售后服务 | 一年保修 |
| 噪声 | 70-90db |
| 执行质量标准 | 国标 |
| 经营模式 | 生产加工 |
| 品牌 | 博图制冷 |
| 型号 | BSD-85S |
| 加工定制 | 是 |
| 能效等级 | 3级 |

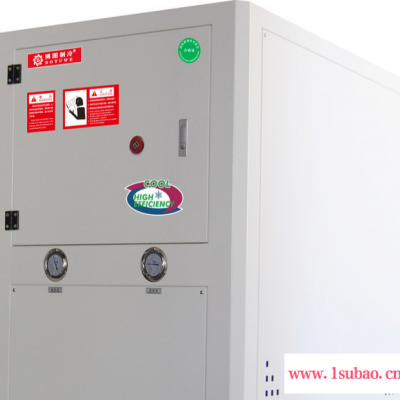

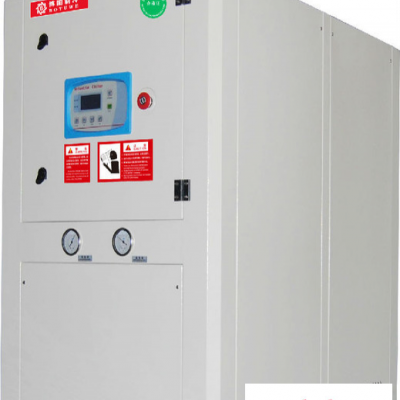

1采用质量过关的品牌螺杆压缩机，角度吻合压缩结构，质量可靠，品质优良。
2高效换热内螺纹管散热翅片，新开发的紊流开窗片设计，增强换热效果。
3外感式压力膨胀阀，控制，制冷效果突出。
4采用一线品牌大风量，低噪音，外转子系列轴流风机。
5不锈钢壳管式换热器，改层流为湍流，换热速度快，结构紧凑。
6微电脑控制器，全自动电脑调节,控制机组温度。
7国际品牌不锈钢水泵，扬程高，噪音低，质量稳定。
8电气元件标配施耐德，西门子系列， 质量可靠，品质好。
9多重开关保护，高低压，电机过载、过热保护，防冻保护，冷水、冷却水断水保护，高压安全阀。
风冷螺杆式冷（热）水机组技术参数
Air cooled screw(Heat) chiller| 机 型 Type | BSD-85S | BSD-115S | BSD-150S | BSD-160S | BSD-200S | BSD-220S | BSD-255S | BSD-270S | BSD-300S | BSD-320S | ||
|
名义制冷量Nominal cooling capacity | kW | 85.0 | 115.0 | 150.0 | 160.0 | 200.0 | 220.0 | 255.0 | 270.0 | 300.0 | 320.0 | |
| 104kcal/h | 7.3 | 9.9 | 12.9 | 13.8 | 17.2 | 18.9 | 21.9 | 23.2 | 25.8 | 27.5 | ||
|
名义制热量Nominal heating capacity | kW | 95.0 | 135.0 | 170.0 | 185.0 | 230.0 | 250.0 | 290.0 | 300.0 | 330.0 | 360.0 | |
| 104kcal/h | 8.2 | 11.6 | 14.6 | 15.9 | 19.8 | 21.5 | 24.9 | 25.8 | 28.4 | 31.0 | ||
| 运行控制方式 Run control | PLC 可编程控制器全自动控制 Use PLC microcomputer control | |||||||||||
| 电 源 Power Supply | 380V/3N/50HZ | |||||||||||
| 启动类型 Startup type | Y- △ | |||||||||||
| 整机功率 (kW) Machine power | 30.8 | 40.9 | 50.3 | 59.6 | 70.6 | 76.7 | 85.0 | 88.5 | 99.8 | 108.4 | ||
| 整机运转电流 (A) Machine operating current | 58.5 | 77.7 | 95.5 | 113.2 | 134.1 | 145.7 | 161.4 | 168.1 | 189.5 | 206.0 | ||
|
压缩机Compressor | 型 式 Type | 5:6 非对称半封闭双螺杆压缩机 Semi-closed 5:6 asymmetric twin-screw compressor | ||||||||||
| 制冷功率 (kW) Refrigeration power | 27.5 | 36.5 | 45.5 | 50.0 | 61.0 | 66.5 | 75.0 | 78.5 | 86.5 | 94.5 | ||
| 制冷电流 (A) Refrigeration current | 46.5 | 61.0 | 77.0 | 84.5 | 103.0 | 112.0 | 126.0 | 132.5 | 146.0 | 159.0 | ||
| 制热功率 (kW) Heating power | 26.5 | 35.0 | 43.5 | 48.0 | 58.5 | 63.5 | 72.0 | 75.5 | 83.0 | 91.0 | ||
| 制热电流 (A) Heating current | 44.5 | 58.5 | 74.0 | 81.0 | 98.5 | 107.0 | 120.0 | 127.0 | 140.0 | 152.0 | ||
| 能量调节 Energy regulation | 0-33%-66 | 0-25%-50%-75 | ||||||||||
|
蒸发器Evaporator | 型式 Type | 高效壳管干式换热器 Pipe dry high efficiency heat exchanger | ||||||||||
| 水流量 (m3/h) Flow | 14.6 | 19.8 | 25.8 | 27.5 | 34.4 | 37.8 | 43.8 | 46.4 | 51.5 | 55.0 | ||
| 水压降 (kPa) Water pressure drop | 45.0 | 45.0 | 45.0 | 48.0 | 48.0 | 48.0 | 50.0 | 50.0 | 50.0 | 50.0 | ||
| 配管管径 (mm) Interface size | DN65 |
| DN80 |
| DN100 |
|
|
|
|
| ||
|
冷凝器Condenser | 型式 Type | 高效铜管与铝箔紧密胀接型翅片式热交换器 Efficiency copper pipe and aluminum foil wing heat exchanger | ||||||||||
| 风机数量 Quantity of fans | 6 | 8 | 8 | 6 | 6 | 6 | 6 | 6 | 8 | 8 | ||
| 单台功率 Stand-alone power | 0.6 | 0.6 | 0.6 | 1.6 | 1.6 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | ||
|
制冷剂Refrigerant | 类 型 Type | R22 |
| |||||||||
| 充注量 (kg) Refrigerant volume | 17.0 | 23.0 | 30.0 | 32.0 | 40.0 | 45.0 | 52.0 | 55.0 | 60.0 | 65.0 | ||
|
外形尺寸Overall dimensions | 长 (mm) Length | 2500 | 2950 | 2950 | 3200 | 3500 | 3500 | 3700 | 3700 | 4000 | 4000 | |
| 宽 (mm) Width | 1400 | 1400 | 1400 | 2200 | 2200 | 2200 | 2200 | 2200 | 2200 | 2200 | ||
| 高 (mm) Height | 1925 | 2100 | 2250 | 2150 | 2150 | 2200 | 2250 | 2350 | 2150 | 2250 | ||
|
重量weight | 机组略重 (kg) Machine weight | 1900 | 2000 | 2200 | 2600 | 2850 | 3000 | 3200 | 3500 | 3800 | 3950 | |
| 运行略重 (kg) Operating weight | 2200 | 2300 | 2500 | 2900 | 3150 | 3300 | 3500 | 3800 | 4100 | 4250 | ||
说明 Directions:
1、以上制冷量基于环境温度 35℃，进水温度 12℃，出水温度 7℃。
The cooling capacity is based on a 35℃ ambient temperature,a 12℃ entering water temperature and a 7℃ leaving water temperature. 2、本公司保留因技术需要更改产品权利，请关注公司网站或向相关业务人员咨询。
Design and specification are sub ject to change without prior notice. 3、以上产品参数是标准型号，如需更大冷量或定制产品，请致电本公司详询。

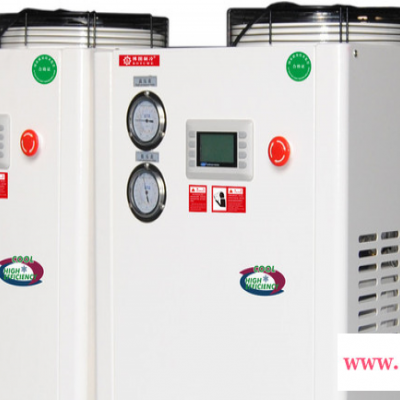

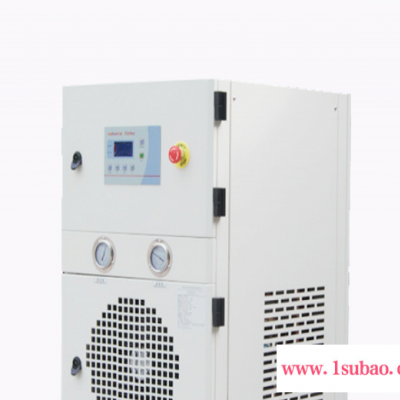

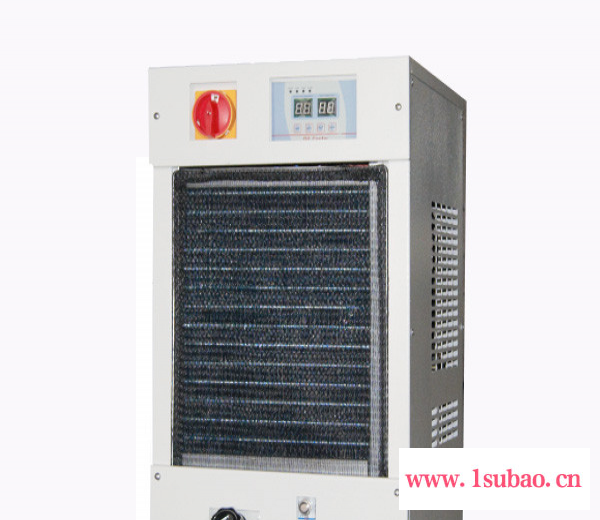

风冷常温机组技术参数
Technical parameters of air cooled normal temperature
| 型 号 | Model |
|
| BCA-01 | BCA-02 | BCA-03 | BCA-04 | BCA-05 | BCA-06 | BCA-08 | BCA-10 |
| 制冷量 | Cooling capacity | KW | 2.7 | 5.4 | 8.5 | 11.9 | 15.0 | 18.0 | 21.5 | 30.0 | |
| 103kcal/h | 2.4 | 4.6 | 7.3 | 10.2 | 12.9 | 15.5 | 18.5 | 25.8 | |||
| 电源 | Power Supply | V/ph/Hz | 220/1/50 | 380/3/50 | |||||||
| 输入功率 | Input Power | kw | 1.34 | 2.19 | 3.19 | 4.73 | 5.23 | 6.13 | 7.76 | 10.54 | |
| 压缩机类型 | Compressor Type |
| 转子式 Rotor | 全封闭高能效涡旋式 Scroll | |||||||
| 压缩机功率 | Compressor Power | kw | 0.88 | 1.69 | 2.45 | 3.8 | 4.3 | 5.2 | 6.2 | 8.6 | |
| 水泵功率 | Pump Power | kw | 0.37 | 0.37 | 0.55 | 0.55 | 0.55 | 0.55 | 1.1 | 1.1 | |
| 水泵扬程 | Pump Head | m | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | |
| 冷冻水流量 | Chilled Water Flow | m3/h | 0.46 | 0.92 | 1.55 | 2.0 | 2.5 | 3.1 | 4.0 | 5.0 | |
| 蒸发器形式 | Evaporator Type |
| 水箱式 / 不锈钢板式 Water Tank Type/Stainless Steel Plate Type | ||||||||
| 水箱容积 | Water Tank Volume | L | 20 | 40 | 50 | 70 | 70 | 80 | 120 | 200 | |
| 接管尺寸 | Pipe Size | DN | 15 | 20 | 25 | 25 | 25 | 25 | 40 | 40 | |
| 冷凝器 | Condenser |
| 紫铜管套铝片高能效翅片式 Coil | ||||||||
| 风量 | Air Volume | m3/h | 1500 | 2800 | 4000 | 6500 | 6800 | 7500 | 9300 | 12000 | |
| 风机功率 | Fan power | W | 90 | 130 | 190 | 380 | 380 | 380 | 460 | 840 | |
| 冷煤 | Refrigerant |
| R22/R134a/R404 | ||||||||
| 节流方式 | Throttle Mode |
| 毛细管 / 膨胀阀 Capillary Tube/Expansion Valve | ||||||||
| 保护装置 | Protector |
| 高低压、过载、防冻、延时、超温、水流保护 Pressure,Overload,freeze,Delay,Over-temperature,Water Flow | ||||||||
| 噪音 | Noise Level | dB(A) | 58 | 59 | 60 | 62 | 62 | 62 | 64 | 65 | |
| 机组重量 | Weight |
| Kg | 75 | 120 | 150 | 180 | 180 | 200 | 230 | 260 |
|
| 长L | mm | 600 | 600 | 1000 | 1200 | 1200 | 1250 | 1450 | 1650 | |
| 外形尺寸 Dimension | 宽W | mm | 520 | 600 | 550 | 600 | 600 | 650 | 750 | 790 | |
| 高H | mm | 800 | 1000 | 1050 | 1100 | 1100 | 1200 | 1200 | 1300 | ||
| 型 号 | Model |
|
| BCA-12 | BCA-15 | BCA-20 | BCA-25 | BCA-30 | BCA-40 | BCA-50 | BCA-60 |
| 制冷量 | Cooling capacity | KW | 38.0 | 46.1 | 62.2 | 70.4 | 93.3 | 124.4 | 140.8 | 176.0 | |
| 103kcal/h | 32.7 | 39.6 | 53.4 | 60.5 | 80.2 | 106.9 | 121.0 | 151.3 | |||
| 电源 | Power Supply | V/ph/Hz | 380/3/50 | ||||||||
| 输入功率 | Input Power | kw | 12.34 | 15.6 | 20.1 | 24.1 | 29.05 | 39.55 | 49.2 | 56.6 | |
| 压缩机类型 | Compressor Type |
| 全封闭高能效涡旋式 Scroll | ||||||||
| 压缩机功率 | Compressor Power | kw | 10.4 | 12.3 | 16.2 | 20.2 | 24.3 | 32.4 | 40.4 | 50.5 | |
| 水泵功率 | Pump Power | kw | 1.1 | 2.2 | 2.2 | 2.2 | 3.75 | 3.75 | 4.0 | 5.5 | |
| 水泵扬程 | Pump Head | m | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | |
| 冷冻水流量 | Chilled Water Flow | m3/h | 6.5 | 7.6 | 10.2 | 11.6 | 15.5 | 21.1 | 26.7 | 29.8 | |
| 蒸发器形式 | Evaporator Type |
| 水箱式 / 不锈钢板式 Water Tank Type/Stainless Steel Plate Type | ||||||||
| 水箱容积 | Water Tank Volume | L | 200 | 270 | 350 | 350 | 420 | 500 | 600 | 650 | |
| 接管尺寸 | Pipe Size | DN | 40 | 50 | 50 | 50 | 65 | 80 | 80 | 80 | |
| 冷凝器 | Condenser |
| 紫铜管套铝片高能效翅片式 Coil | ||||||||
| 风量 | Air Volume | m3/h | 13000 | 16000 | 20000 | 24000 | 29000 | 40000 | 48000 | 60000 | |
| 风机功率 | Fan power | W | 840 | 1100 | 1700 | 1700 | 2550 | 3400 | 3900 | 4200 | |
| 冷煤 | Refrigerant |
| R22/R134a/R404 | ||||||||
| 节流方式 | Throttle Mode |
| 膨胀阀 Expansion Valve | ||||||||
| 保护装置 | Protector |
| 高低压、过载、防冻、延时、超温、水流保护 Pressure,Overload-freeze,Delay,Over-temperature,Water Flow | ||||||||
| 噪音 | Noise Level | dB(A) | 65 | 67 | 68 | 68 | 68 | 68 | 68 | 68 | |
| 机组重量 | Weight |
| Kg | 350 | 650 | 750 | 1200 | 1300 | 1500 | 1800 | 2100 |
|
| 长L | mm | 1650 | 1850 | 2000 | 2150 | 2600 | 3300 | 3300 | 4100 | |
| 外形尺寸 Dimension | 宽W | mm | 790 | 900 | 950 | 1000 | 1100 | 1500 | 1500 | 1500 | |
| 高H | mm | 1300 | 1650 | 1650 | 1700 | 1700 | 1600 | 1600 | 1600 | ||
说明： Directions: 1、以上制冷量基于环境温度 35℃，进水温度 12℃，出水温度 7℃。
The cooling capacity is based on a 35℃ ambient temperature,a 12℃ entering water temperature and a 7℃ leaving water temperature. 2、本公司保留因技术需要更改产品权利，请关注公司网站或向相关业务人员咨询。
Design and specification are sub ject to change without prior notice. 3、以上产品参数是标准型号，如需更大冷量或定制产品，请致电本公司详询。
The above parameters are standard products. If you need more cooling or customized products, please contact us.
