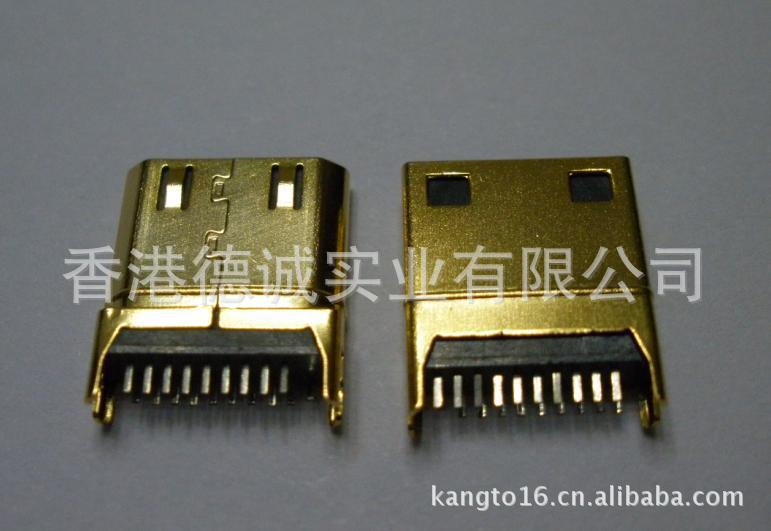

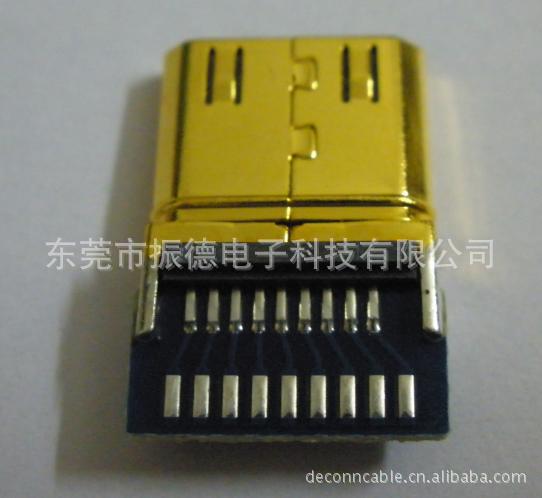

Mini HDMI C TYPE 带PCB板 夹板式 连接器

Feature: HDMI is the first industry-supported, uncompressed, all-digital audio/video interface. HDMI provides an interface between any audio/video source. HDMI supports standard, enhanced, or high-definition video, plus multi-channel digital audio on a single cable. It transmits all ATSC HDTV standards and supports 8-channel digital audio, with bandwidth to spare to accommodate future enhancements and requirements. HDMI is full backward-compatible with DVI that handles digital transfers at rates up to 5 Gbps ! -------------------------------------------------------------------------------- Electrical: Contact Current Rating: 0.5A Min Voltage Rating: 40V AC(rms) Withstanding Voltages:500V AC (for 1 minute) Insulation Resistance: 100M ohms Min. Contact Resistance: 30m ohms Max. Working Temperature: -25?C ~ +85?C -------------------------------------------------------------------------------- Mechanical: Insulator Material: High-Temperature thermoplastic (UL94V-0) Contact: Copper Alloy. Insertion Force: 44.1 N Max. Withdraw Force: 9.8 N Min.
