| 工件限重kg | 25 |
|---|---|
| 机台型号SPECIFICATION | EASY-100 |
| Z轴行程Z AXIS STROKE | 80mm |
| 产地 | 广东东莞 |
| 品牌 | 维鸿 |

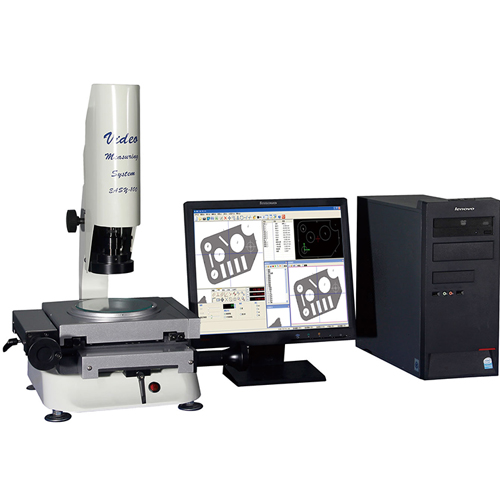

| 便携式影像测量仪 Portable image measuring Machine | |
| 机台型号SPECIFICATION | EASY-100 |
| 量测行程mm(X,Y,Z)MEASURING TRAVEL | 100*100*80 |
| 工件限重kg DEMO-PARTS WEIGHT | 25 |
| Z轴行程Z AXIS STROKE | 80mm |
| 操作方式OPERATION | MANUAL 手动 |
| 基座材质base MATERIAL | CAST ALUMINUM 精密铸铝 |
| 传动方式KIND OF DRIVE | BALL SCREW &linear rail 滚珠螺杆&线性滑轨 |
| 线性精度LINEAR ACCURACY | 3+L/200 μm (Temperature 温度201)HUMIDITY 相对湿度：55-65% |
| 重复精度REPEAT ACCURACY | 3μm |
| 光学尺LINEAR SCALES | EUROPE importED LINEAR SCALES 欧美进口光学尺1μm (选配:0.5μm、0.1μm) |
| 影像系统IMAGING SYSTEM | EUROPE HIGH RESOLUTION COLOR SYSTEM 欧美制超高解析彩色系统 |
| 光源系统LIGHT SOURCE SYSTEM | WHITE LED 表面LED白光 |
| 光学镜头OPTICAL LENS | MANUAL CHANGE LENS 手动变倍镜头 |
| 光学倍率OPTICAL POWER | 30X ~ 180X |
| 量测软件SOFTWARE | VMM2.5D MEASURING SOFTWARE VMM2.5D 影像测量软件 |
| 计算机硬件HARDWARE | PC + LCD Color Monitor |
| 外观尺寸(W*D*H) mm APPEARANCE | 500*500*700 |
| 机器重量kg MACHINE WEIGHT | 30 |
| 电源POWER | AC110V ~ AC220V 单相 50/60Hz |
| 旋转台TURN TABLE | Φ100mm |
| 选购配备/软件 OPTION/SOFTWARE | 0.5X~10X WORK OBJECTIVE 0.5X~10X 工作物镜 |
