- 品牌/型号：XLF/GFP241U-XXXX
- OEM：可OEM
- 输入电压范围：90-264
- 适用产品：数码相框
- 品牌：XLF
- 输出电压：3-24V
- 型号：GFP241U-XXXX

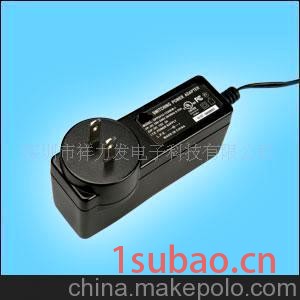

24W開關電源適配器類產品目錄索引: |
| 5V | 6V | 9V | 10V | 12V | 15V | 24V |
| 4A | 3.8A | 2.6A | 2.4A | 2A | 1.6A | 1A |
| 24W開關電源適配器技術參數: |
| 特徵[Feature]： |
超小體積,便於攜帶 [Super Mini Size and Easy Protable] |
輕便,自帶插頭,方便使用 [Light&Convenient Plug In] |
| 用途[Application]: |
數位相機[Digital Camera] |
光碟機 集線器 路由器 [CD-ROM HUB ADSL AP] |
通訊終端設備[Communication Terminals] |
測試設備[Tester Machine] |
任何攜帶型設備或機器[Any Protable Device or Machine] |
| 輸入/輸出規格[Input/Output Specifications]: |
輸入電壓[Input Voltage]: AC 100-240V,50/60Hz |
輸入電壓範圍[Range Voltage]: AC 90--264V,47/63Hz |
輪出功率[Output Power]: 24W |
輸出電壓[Output Voltage]: 3V-24V |
過壓保護[Over Voltage Protection]: 120%min |
過流保護[Over Current Protection]: 120%min |
短路保護[Short Protection]: Auto Recovery |
輸出電壓變動[Load Regulation]: ±5% |
| 一般規格[General Specifications]: |
工作環境溫度[Operating Temperature]: 01.0pt; mso-ansi-language: EN-US; mso-fareast-language: ZH-TW; mso-bidi-language: AR-SA">~40℃ |
儲存溫度[Storage Temperature]: -201.0pt; mso-ansi-language: EN-US; mso-fareast-language: ZH-TW; mso-bidi-language: AR-SA">~85℃ |
工作濕度[Operating Relative Humidity]: 5~95%RH |
耐壓[Withstanding Voltage]: AC3000V(Min),5mA(Max) |
絕緣阻抗[Insulation Resistance]: DC 500V 100M1.0pt; mso-ansi-language: EN-US; mso-fareast-language: ZH-TW; mso-bidi-language: AR-SA">Ω(Min) |
| 安規[Safety]:UL/cUL PSE ROHS |
