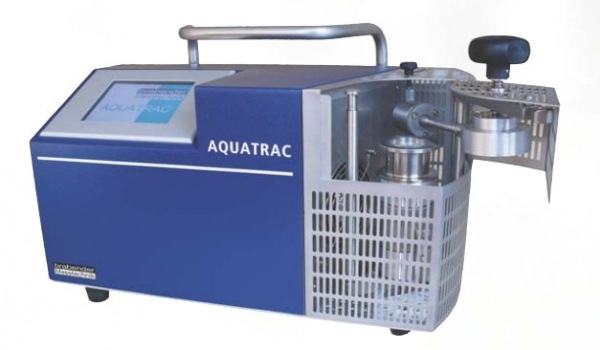

AQUATRAC-3E水活度仪，专业用于塑料微量水份测试的水份仪

塑料的含水量会极大地影响其最终制成品的质量，而其含水量可借助于一种仪器对其取样测试而获得。AQUATRAC- 3E是已存于市场20年并深受用户欢迎的 AQUA-TRAC的升级产品。确如其使用于塑料工业的研发初衷，仪器用于塑料固体颗粒的水份测试。AQUATRAC- 3E具有高效，紧凑和便携的特点。这意味着有许多方法将 AQUATRAC- 3E直接用于生产现场。

由于是绝对的化学测试原理，所以无须对不同的测试对象进行特别的校正。 AQUATRAC- 3E可以单独使用也可连接外接装置如打印机等。使用的反应剂是颗粒状的氢化钙，对其水的反应是非常充分的，并且无毒、无污染。

应用领域：

--现场检测来料的水份

---监控和模拟塑料颗粒的干燥过程

---测试塑料颗粒进入塑料加工设备前的水份

---混合塑料颗粒的水份测试，比如多种原料按照配方高速混合后的水份

---常规实验用途

---更多客户实际使用时的需要

适用样品材质：

Acrylonitrile butadiene styrene AB
Polybutyleneterephthalate PBT
Ethylene Copolymer EVA
Polyacryletherketone PAEK
Polyamide 6.6 PA 6.6
Polyamide 6 PA 6 GF 30
Polyamide 12 PA 12
Polycarbonate PC
Polyester PET
Polyester elastomer TPE
Polyether imide PEI
Polyethylene HDPE
Polyethylene LDPE
Polyethyleneterephtalate PETP
Polymer blend PETP/PC
Polymethylmethacrylate PMMA
Polypropylene PP
Polyphenylene ether PPE
Polyphenylene sulphide PPS
Polysulphone PSU
Polyurethane TPU

测试原理：与氢化钙的化学反应(标配氢化钙可测试1000多次)

测试范围：3个测试范围(低于0.1%、0.1-0.5%、高于0.5%)

样品重量：0.1-100g(取决于测试范围)

测试时间：10-30分钟(取决于样品类型)

测试温度：60-200°C，间隔1°C

测试结果显示：%H2O或ppm

精度：读数的2%，范围的1%

重复性：测试范围的1%

重量：13kg/14.8kg

外形：51×35×23cm

相关下载：

AQUATRAC-3E- Kotraco Plastic Machinery

AQUATRAC ®-3EMoisture Meter for Plastics

The water content is in the processing of high-grade engineering plastics is an important parameter for the quality of the manufactured product.The required measurement should be quick and easy to perform.

The AQUATRAC ® - 3E is the result of continuous development of the familiar for 20 years Aquatracs.When measuring the moisture content of granular solids, it was developed primarily for the plastics processing industry.It is built to last and compact and can be easily transported by its new mobility.Therefore, there are many opportunities for direct use at the production site, for example when:

• Incoming inspection
• Monitoring and optimizing the resin drying
• measurement of the granulate to the machine
• measurement of the finished part, for exampleafter conditioning
• Laboratory measurements
As it does not require absolute meter calibrations for different substances.The use is independent of a PC or other peripheral possible.

Ranges

Different ranges are the AQUATRAC ® - 3E achieved by different weights.Slightest trace of moisture (less than 0.01% H2O) is measured at high, representative sample volumes (up to 100g).With reduced sample weight, the measuring range can be extended to very high humidities.Changing the measuring cup is no longer necessary, since with only one measuring cup accurate results.

Measurement procedure

The measuring volume consists mainly of the measuring cup, which contains the sample and reagent.The sample is weighed, the prescribed weight does not have to be exact.The read off on the scale weight is entered.The sample is then filled into the measuring cup.This is evacuated in a sealed reaction vessel automatically through the built-in pump, which requires about 30s.The vacuum is achieved <10 mbar absolute.The reaction vessel containing the sample is heated then it is given to temperatures of 60 ° C to 200 ° C, freely selectable.The few necessary operations are the AQUATRAC ® - 3E executed via a touchscreen.Optionally, the user can also be performed with a step by step guide through the measurement.

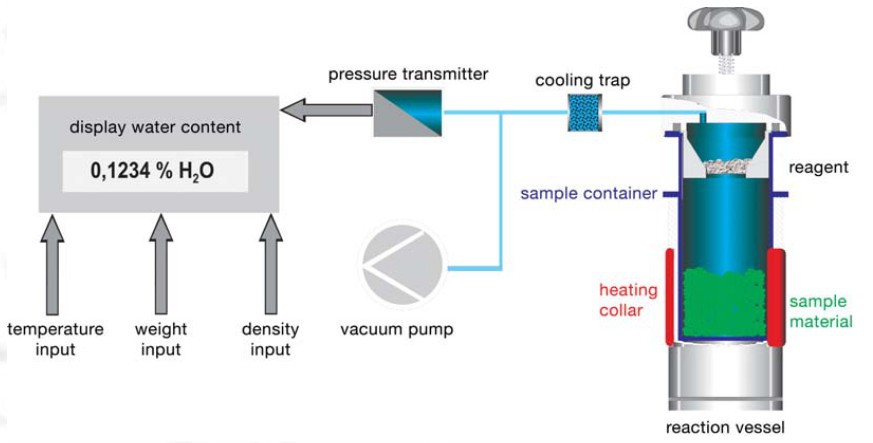

Principle

Water and calcium react with evolution of hydrogen according to the following equation: CaH2 + 2 H2O Ca (OH) 2 + 2 H 2 This reaction is the AQUATRAC ® - 3E in a closed vessel, the reaction vessel from.It will be evacuated prior to the measurement with a built-in vacuum pump, and during the measurement, electrically heated.By heating the released water vapor reacts with the calcium hydride and the pressure in the measurement system increases by the developing hydrogen.The gas pressure is the amount of water brought in strict proportion, because the reaction is specific for water.The gas pressure is a measure of this method.The ratio of pressure and sample weight is calculated and the result is displayed in% or ppm H2O water content.Other volatile substances are condensed in a cold trap and thus take no part in the measurement.The reagent is heated above the material sample.The partial pressure of water vapor in the reaction vessel is zero, therefore, the water content is defined completely.Together with the effect of vacuum and temperature results in a faster reaction.Also by the vacuum is the measurement process without the presence of oxygen may be disturbing.

Reagent

The reagent calcium hydride is used in granular form.It is non-toxic and environmentally friendly, so no special disposal is required.Using a measuring spoon, the reagent in the AQUATRAC ® is - 3E filled.This charge is used several times, with the resulting amount of hydrogen is very low at each measurement.The reagent is available in pack sizes of 250 g, which is sufficient for approximately 1000 measurements.

Product Database

In AQUATRAC ® - 3E already extensive product database with the information necessary for the density and temperature measurement is stored.Thus, measurements can be performed quickly, without having to enter additional parameters.This database can be added or edited at any time, and thus adapted to customer needs.

Applications

Some typical plastics
Acrylonitrile butadiene styrene AB
Polybutyleneterephthalate PBT
Ethylene Copolymer EVA
Polyacryletherketone PAEK
Polyamide 6.6 PA 6.6
Polyamide 6 PA 6 GF 30
Polyamide 12 PA 12
Polycarbonate PC
Polyester PET
Polyester elastomer TPE
Polyether imide PEI
Polyethylene HDPE
Polyethylene LDPE
Polyethyleneterephtalate PETP
Polymer blend PETP/PC
Polymethylmethacrylate PMMA
Polypropylene PP
Polyphenylene ether PPE
Polyphenylene sulphide PPS
Polysulphone PSU
Polyurethane TPU

Calibration

As described in DIN EN ISO 15512, the Calibration of the AQUATRAC ®-3E using sodium molybdate dihydrate.The sequence corresponding to a normal measurement, and can be performed on site.

Data storage

On the internal hard drive AQUATRAC ® - 3E Up to 500 measurements can be stored.In addition, the measurement results for further processing on a PC to a USB - Stick.An expression can possibly also directly through an on AQUATRAC ® - 3E connected, place the printer.
