1920x1200 1万流明短焦镜头可换大型户外剧院投影机专业投影仪|目前最新的【供应】

商品信息

基本参数

品牌：	维亮
所在地：	北京
起订：	≥1
供货总量：	未填
有效期至：	长期有效

详细说明

品牌/型号：维亮/PLWU8100F
品牌：维亮
投影方式：正、背投皆宜可摆放或吊装
型号：PLWU8100F
电压：90~260（V）V
功率：480（w）W
重量：15（kg）kg

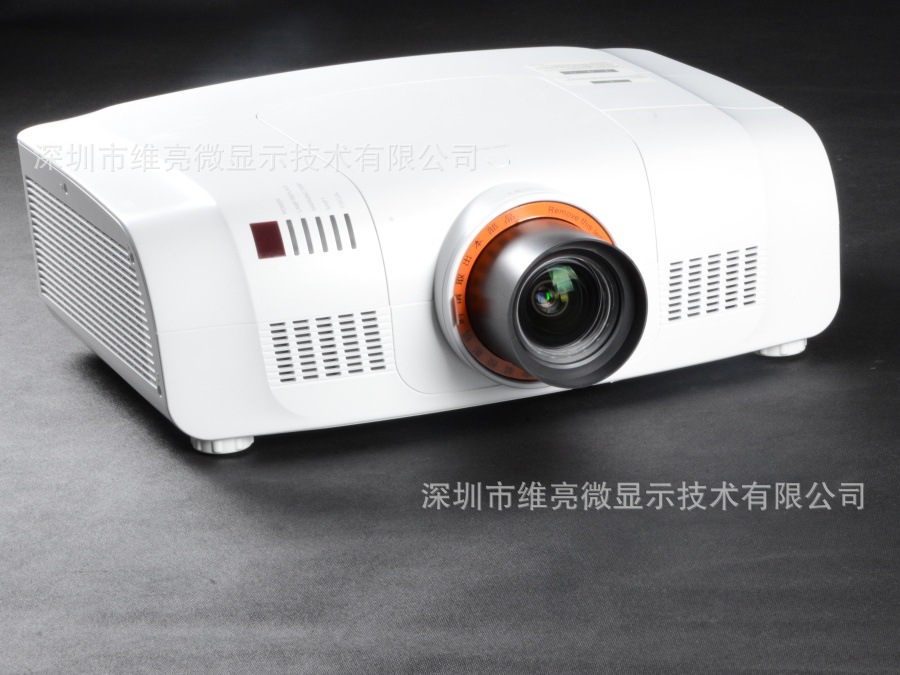

维亮/VIVIBRIGHT PLWU8100F 专业级户外场馆、剧院大厅专用大型工程投影机基本参数包含如下：

* 10,000流明,Native WUXGA/1920x1200Pixels;450W lamp
* a Motorized Lens Design Auto Focus(+/-).Support for lens replacement
* 3LCD Technology;0.74"SONY LCD Panel x3;
* Standard Ports Contains:
HDMI*1; VGA*2; Scart*1; BNC*5; YCbCr*1; S-Video*1; Video*1;
Audio: 3.5mini jack, RCA*2; RS232*1; RJ45*1;

维亮工程投影机

备注：
此型号不支持天猫、淘宝客户出货。工程拼接或者国外买家直接需求请联系维亮销售

PLWU8100F系列的工程机维亮公司独家生产和销售，目前没有固定的代理商，采购请直接联络维亮

具体需求量请电联确认或者在线讨论！

PLWU8100F 此价格仅仅是一台投影机和标准镜头出货，不包含其他替代镜头，如需求其他替代镜头将是付费的

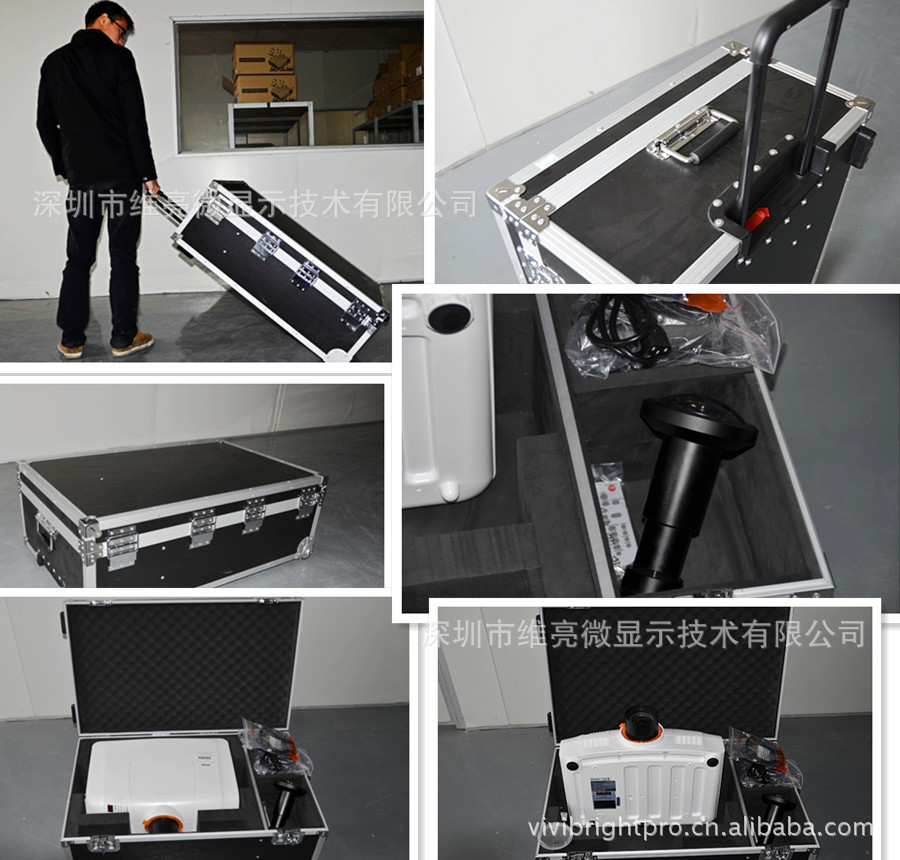

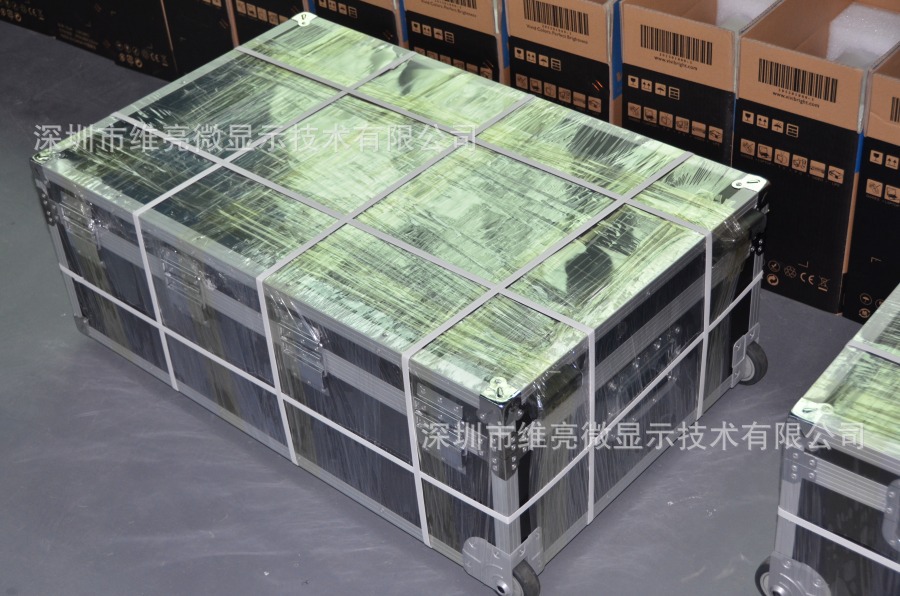

出货包装标准是纸箱，如担心货物运输破损请购买航空铝箱，这些都是额外的报价；如下为PLWU8100F详细参数：

Basic Parameters:
Display Technology	3LCD Panels x 0.76" SONY
Native Resolution	WUXGA / Native 1920 x 1200 Pixels Original resolution_PLWU8100F
Max. Video Input	4K
Brightness	10,000 ansi Lumens (Market) / 8,000 ansi Lumens (std)
Contrast	4000:1 Contrast Ratio,Dynamic Video contrast ratio up to 10000:1 by HDMI
Fan Noise	As low as 31 dBa
Aspect Ratio	16:10 Native, 4:3Compatible
Projection Method	Front, Rear,Ceiling,Table Top;Projection Image support horizontal and vertical flip
Weight	12 kg
I/O Connectors	Inputs:	PC/Video: 15 Pin D-sub (RGB/YPbPr/SCART), S-Video, Composite/VGA in x 2,RGBHV,DVI…
	HDMI:	HDMI Terminal output Support HD 1.1~1.4
	Outputs:	VGA Out x 1,Audio output x 1,RCA…
	Network Control:	Wired LAN monitor & control and system management with optional module by RJ45
	Control:	RS232 x 1
Maximum Resolution	4K via HDMI Terminal
Computer Compatibility	Standard 1080P(1920x1080),WSXGA+,WXGA+,WXGA(1280x800/1280x768),UXGA, SXGA, XGA, SVGA, VGA, Mac…
Video Compatibility	PAL (B, D, G, H, I, M, N, 576i/p), NTSC (M, 4.43/3.58 MHz, 480i/p), SECAM (B, D, G, K, K1, L) HD (1080P, 720p)
Displayable Colours	1.07 Billion
Projection Lens	Standard lens:	Power zoom and focus lens, 1:1.6X, F=1.7~2.2, f=22~35mm, 1/2x1/2~4x4
	Power Lens Shift:	U/D 50%; L/R 10%
	Lens Optional:	See another file for lens catalog
Throw Ratio	1.31:1
Projection Screen Size	30” - 500”/ Diagonal 4:3
Projection Distance	1.025-24.48m(Standard Power Lens )
Horizontal Scan Rate	15.3 - 91.1kHz
Vertical Scan Rate	24 - 85Hz
Lamp Type/Lamp Life	450W single lamp, 6000/5000 hours (ECO/BRIGHT mode)
Keystone Correction *	± 40° Vertical
Dimensions (W x D x H)	535mm x 390mm x 190mm
Remote Control	Full function remote with direct source selecting
Power Supply	100-240V, 50-60Hz
Power Consumption	500W BRIGHT mode <5W Standby mode, 480W STD mode < 1W Standby mode
Operating Conditions	5°C - 40°C, Max. Humidity 85%, Max. Altitude 3000m
Uniformity	90%
Security	Kensington Lock, Password Protection
Standard Accessories	AC Power Cord,VGA Cable, Remote Control,Quick Start Card,CD User Manual, Warranty Card
Optional Accessories	Ceiling Mount Kit, Additional Ultra long Cable
Warranty	Projector 1-Years,lamp six months or 500Hrs

维亮工程投影机

OEM大客户联系：徐经理、杨经理
QQ:2219315564 邮箱：2219315564@
维亮新模具，新研发，新外观匹配，外贸出口退税合作支持！
长期销售合作可面谈，对应外贸单子展示厅、办公室、会议室可借用。求长期合作客户！
售前：专业的分销团队批、零兼售13728708700，固话：0755-83938394
售后：7x24小时维亮厂家技术支持18927474740，网站支持
到厂参观、样品测试访谈地址：
深圳市南山区龙珠五路龙井第二工业区D栋一楼（维亮科技）

维亮的优势：
家用类：自有模具专业生产LED家用投影机、1080P家庭影院投影机
商用类：DLP教育多媒体投影机、3LCD教育多媒体投影机海外投标单支持
独家私模供应方式以及各品牌投影机原始代工厂合作优势

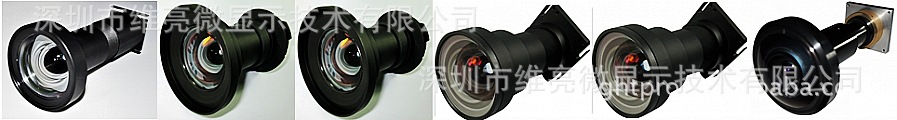

客户可考虑维亮投影机PLWU8100F的一些替代镜头，如下参数基于不同的投射比价价格是不同的，详细需求请联系：18927474740
谢谢

lens series

Lens Model		VIVI-W20 (New)	VIVI-W21G (New)	VIVI-W21A	VIVI-S20	VIVI-T20	VB-FLS08170M
Lens Types		Ultra-Short Throw (UST Lens)Wide Angle Fixed-Focus lenses Best for Rear projection	Ultra-Short Throw (UST Lens)Wide Angle Fixed-Focus lenses Best for Rear projection	Short Throw (ST lenses) Fixed-Focus	Telephoto Zoom lenses	Ultra Telephoto Zoom lenses	Circular Fisheye lens
Weight (kg)		1.2	1.2	1.2	0.8	1.2	2.2
Throw ration (D/W)		0.37:1	0.57:1	0.68:1	2.2~3.0:1	3.1~4.2:1	n/a(170 degrees)
Image Size (Inch)	W x H (m)	Projection Distance (m)_ Different Distance with Different Projection image size,The following data is just a reference range…
40"	0.8x0.6	0.3m	0.5m	0.5m	1.8~2.4m	2.5~3.4m	F-number(F/#):2.8 imageCircle Diameter: 14.48 mm exit Pupil Position: apogalacticon Modulation Transfer Function (MTF@36lp/mm): 0.60(As the view in) / 0.35(full field) Lateral Color:15um Relative lllumination: 0.85 Distortion: +/-0.5 % FOV:180 Degrees Optical length: 245 mm
60"	1.2x0.9	0.4m	0.7m	0.8m	2.6~3.6m	3.7~5.0m
80"	1.6x1.2	0.5m	0.9m	1.1m	3.5~4.8m	5.0~6.7m
100"	2.0x1.5	0.7m	1.1m	1.4m	4.4~6.0m	6.2~8.4m
120"	2.4x1.8	0.8m	1.3m	1.6m	5.3~7.2m	7.4~10.1m
150"	3.0x2.3	1.1m	1.7m	2m	6.6~6.9m	9.3~12.6m
200"	4.1x3.0	1.4m	2.3m	2.8m	9.0~12.3m	12.7~17.2m
250"	5.1x3.8	1.8m	2.9m	3.5m	11.2~15.3m	15.8~21.4m
300"	6.1x4.6	2.2m	3.5m	4.1m	13.4~18.4m	18.9~25.6m
350"	7.1x5.3	2.6m	4m	4.8m	15.6~21.3m	22.0~29.8m
400"	8.1x6.1	3.0m	4.6m	5.5m	17.8~24.3m	25.1~34.0m
500"	10.0x7.6	3.8m	5.8m	7m	22.2~27.2m	31.3~42.4m
